ROP모드
dwRop는 현재 화면에 출력되는 이미지와 출력하고자 하는 이미지를 조합하는 연산을 말한다.
| 매크로 상수 | 설명 |
| NOTSRCERASE | 화면색과 비트맵 색을 or 연산후 반전 |
| NOTSRCCOPY | 비트맵을 반전 |
| PATCOPY | 현재 선택된 브러시로 칠함 |
| PATNVERT | 브러시와 화면색을 XOR 연산 |
| SRCAND | 비트맵과 화면색을 AND 연산 |
| SRCCOPY | 비트맵을 그대로 화면으로 출력 |
| SRCPAINT | 비트맵과 화면을 OR연산 |
| WHITENESS | 무조건 흰색으로 칠함 |
| BLACKNESS | 무조건 검정색으로 칠함 |
| DSTINVERT | 회면색을 반전 |
| MERGECOPY | 브러시와 비트맵의 색을 AND 연산 |
타이머를 이용하여 0.1초마다 함수를 호출하여 움직이는 이미지를 만들어 보자.
|
#include <windows.h> #include <TCHAR.H> #include "resource.h" LRESULT CALLBACK WndProc(HWND hwnd, UINT iMsg, WPARAM wParam, LPARAM lParam); HINSTANCE hInst; int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpszCmdLine, int nCmdShow) { HWND hwnd; MSG msg; WNDCLASS WndClass; hInst = hInstance; WndClass.style = CS_HREDRAW | CS_VREDRAW; WndClass.lpfnWndProc = WndProc; WndClass.cbClsExtra = 0; WndClass.cbWndExtra = 0; WndClass.hInstance = hInstance; WndClass.hIcon = LoadIcon(NULL, IDI_APPLICATION); WndClass.hCursor = LoadCursor(NULL, IDC_ARROW); WndClass.hbrBackground = (HBRUSH)GetStockObject(WHITE_BRUSH); WndClass.lpszMenuName = NULL; WndClass.lpszClassName = _T("Window Class Name"); RegisterClass(&WndClass); hwnd = CreateWindow(_T("Window Class Name"), _T("Window Title Name"), WS_OVERLAPPEDWINDOW, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, NULL, NULL, hInstance, NULL); ShowWindow(hwnd, nCmdShow); UpdateWindow(hwnd); while (GetMessage(&msg, NULL, 0, 0)) { TranslateMessage(&msg); DispatchMessage(&msg); } return (int)msg.wParam; } void Animation(int xPos, int yPos, HDC hdc) { HDC memdc; HBITMAP RunBit[10], hBit, oldBit; static int count; int i; count++; count = count % 10; RunBit[0] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R1)); RunBit[1] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R2)); RunBit[3] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R4)); RunBit[4] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R5)); RunBit[5] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R5)); RunBit[6] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R7)); RunBit[7] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R8)); RunBit[8] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R9)); memdc = CreateCompatibleDC(hdc); hBit = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP5_6)); //배경이미지 불러오기 oldBit = (HBITMAP)SelectObject(memdc, hBit); BitBlt(hdc, 0, 0, 819, 614, memdc, 0, 0, SRCCOPY); // 배경이미지 출력 SelectObject(memdc, RunBit[count]); BitBlt(hdc, xPos, yPos, 180, 240, memdc, 0, 0, SRCCOPY); // SRCCOPY 화면에 그대로 출력 SelectObject(memdc, oldBit); for (i = 0; i < 10; i++) DeleteObject(RunBit[i]); DeleteDC(memdc); DeleteObject(hBit); } LRESULT CALLBACK WndProc(HWND hwnd, UINT iMsg, WPARAM wParam, LPARAM lParam) { HDC hdc; PAINTSTRUCT ps; static int xPos;
switch (iMsg) { case WM_CREATE: xPos = -100; SetTimer(hwnd, 1, 100, NULL); // ID가 1인 타이머 생성, 0.1초마다 WM_TIMER 호출 break; case WM_TIMER: xPos += 10; if (xPos > 819) xPos = -100; InvalidateRgn(hwnd, NULL, true); return 0; case WM_PAINT: hdc = BeginPaint(hwnd, &ps); Animation(xPos, 300, hdc); EndPaint(hwnd, &ps); break; case WM_DESTROY: KillTimer(hwnd, 1); PostQuitMessage(0); break; } return DefWindowProc(hwnd, iMsg, wParam, lParam); } |

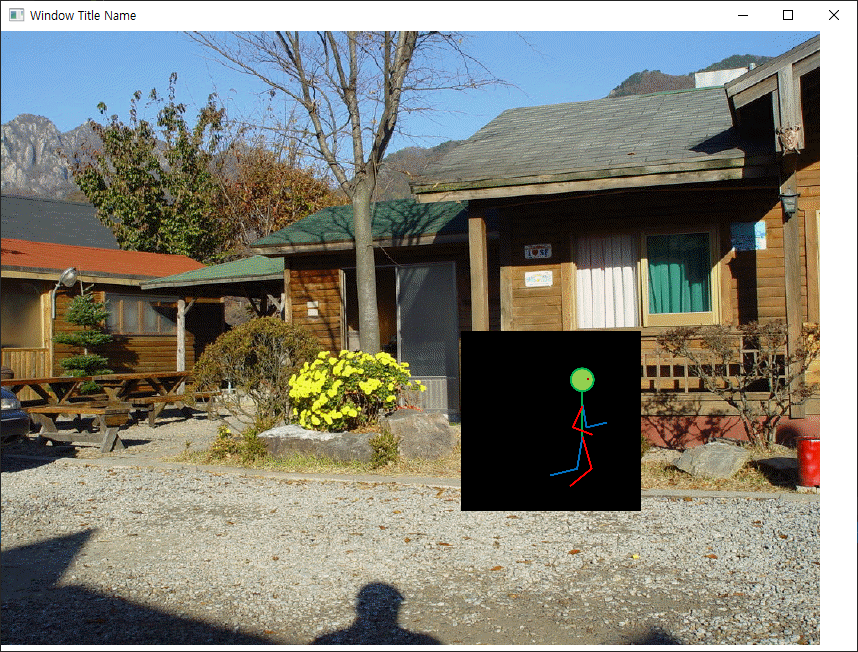

실행결과]
마스크를 이용한 애니메이션 프로그램
|
void Animation(int xPos, int yPos, HDC hdc) { HDC memdc; HBITMAP RunBit[10], hBit, oldBit, Mask[10]; static int count; int i; count++; count = count % 10; RunBit[0] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R1)); RunBit[1] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R2)); RunBit[2] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R3)); // RunBit[3] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R4)); // RunBit[4] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R5)); // RunBit[5] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R5)); // RunBit[6] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R7)); // RunBit[7] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R8)); // RunBit[8] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R9)); // RunBit[9] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_R10)); // Mask[0] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M1)); Mask[1] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M2)); Mask[2] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M3)); Mask[3] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M4)); Mask[4] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M5)); Mask[5] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M6)); Mask[6] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M7)); Mask[7] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M8)); Mask[8] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M9)); Mask[9] = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP_M10));
memdc = CreateCompatibleDC(hdc); hBit = LoadBitmap(hInst, MAKEINTRESOURCE(IDB_BITMAP5_6)); oldBit = (HBITMAP)SelectObject(memdc, hBit); BitBlt(hdc, 0, 0, 819, 614, memdc, 0, 0, SRCCOPY); SelectObject(memdc, Mask[count]); BitBlt(hdc, xPos, yPos, 180, 240, memdc, 0, 0, SRCAND); // AND연산 이미지의 배경이 사라지고 캐릭터만 보임 SelectObject(memdc, RunBit[count]); BitBlt(hdc, xPos, yPos, 180, 240, memdc, 0, 0, SRCPAINT); // 캐리터가 OR연산으로 칼러 캐릭터만 보임 SelectObject(memdc, oldBit); for (i = 0; i < 10; i++) { DeleteObject(RunBit[i]); DeleteObject(Mask[i]); } DeleteDC(memdc); DeleteObject(hBit); } |

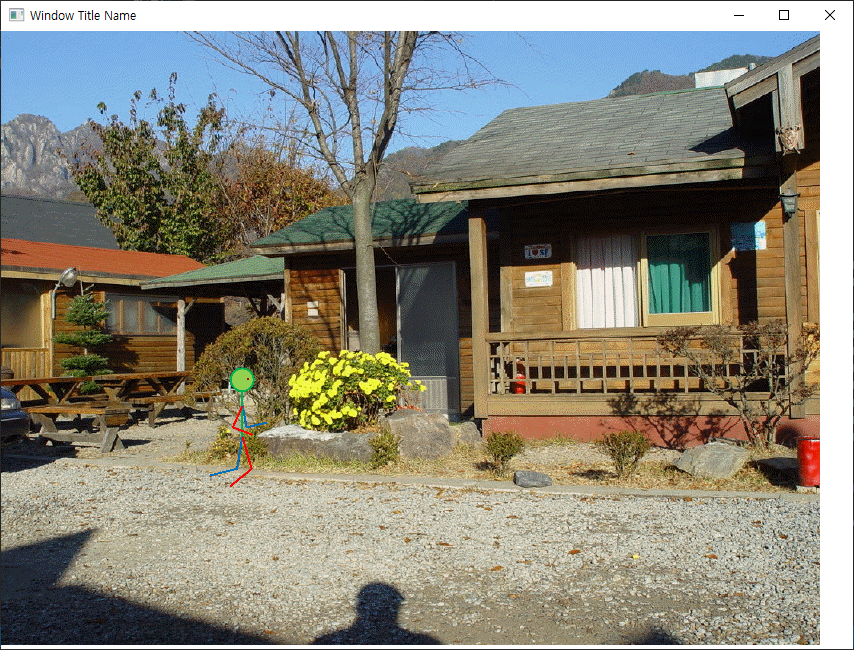

실행 결과]
